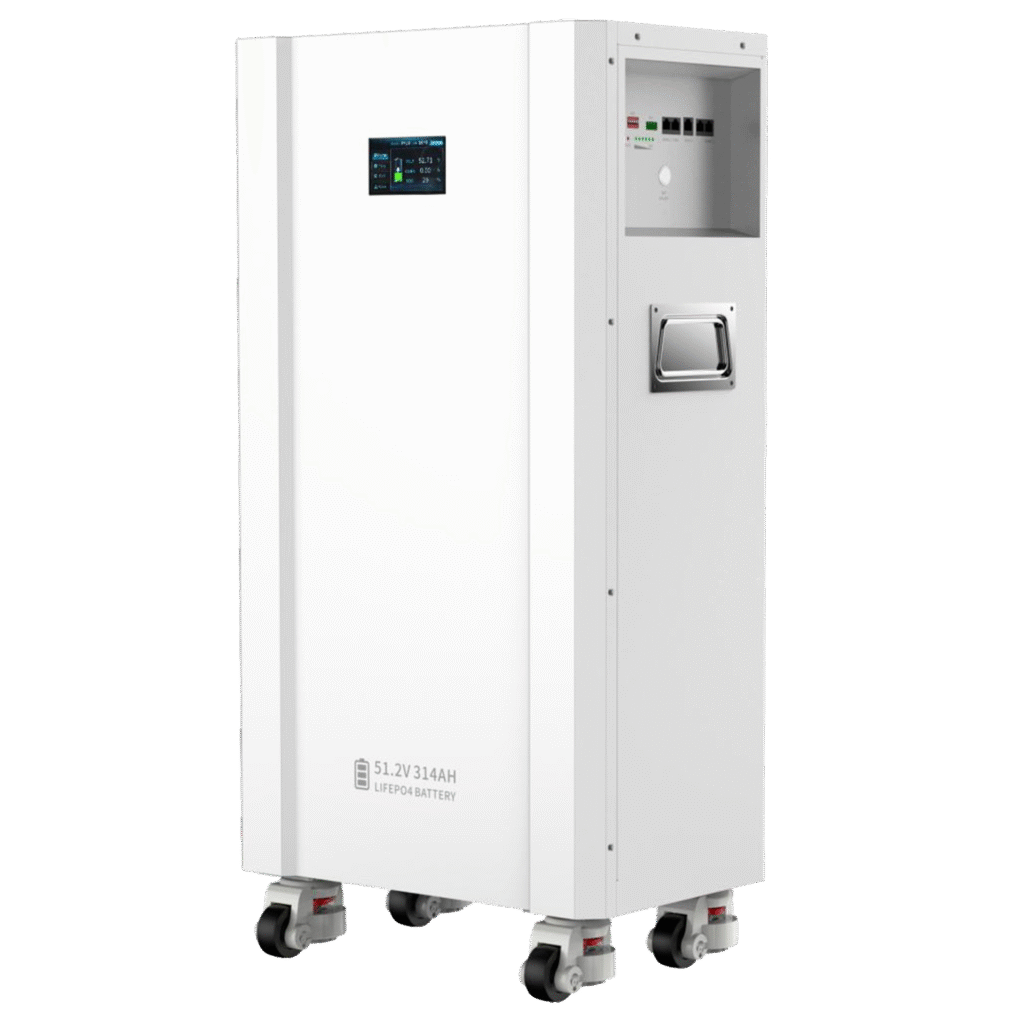

HF PRO Tower-type Lithium Battery
The HF PRO 51.2V is a floor-standing LiFePO4 energy storage system optimized for flexible home and small commercial ESS applications. Using high-capacity LiFePO4 cells, it delivers 14.34kWh usable energy with stable long-term cycling, excellent thermal safety, and more than 6000 cycles lifespan.The intelligent BMS and optimized cabinet structure ensure safe operation and easy maintenance, while CAN / RS485 ensures direct communication with mainstream hybrid inverter brands.
HF PRO Tower-type Lithium Battery
Main Features
- 14.34kWh/16.08kWh moderate-to-large capacity storage
- Grade-A LiFePO4 cells, 6000+ cycle operational lifespan
- Strong inverter compatibility via CAN / RS485
- High discharge performance supports HVAC, pumps, and inductive loads
- CAN / RS485 for direct hybrid inverter communication
- Floor-mounted cabinet design → fast deployment & simplified service
- Suitable for standard ESS project templates & distributor stocking models
It is applied to use in Residential ESS dealers / EPC solution providers / Solar installers / Micro-grid integrators
Solar + storage whole-home supply with blackout protection
Offices, workshops, retail stores requiring stable UPS backup
Agricultural irrigation / cold chain storage / rural power stabilization
Weak-grid regions requiring energy independence
Micro-grid and distributed ESS deployment programs
The Technical Parameter of HF PRO Tower-type Lithium Battery
| MODEL | HF PRO MAX Series 51.2V280Ah | HF PRO MAX Series 51.2V314Ah |
|---|---|---|
| Basic Information | ||
| Case design | Tower | Tower |
| Battery Type | LiFePO4 | LiFePO4 |
| Nominal Battery Voltage (Vdc) | 51.2V | 51.2V |
| Nominal Capacity (25°C 0.2C) (Ah) | 280Ah | 314Ah |
| Nominal Energy (25°C 0.2C) (Wh) | 14336Wh | 16076Wh |
| Float Charge Voltage (Vdc) | 56.0V | 56.0V |
| Operation Voltage Range (Vdc) | 40.0–58.4V | 40.0–58.4V |
| Current | ||
| Max. Continuous Charge Current (A) | 200A | 200A |
| Max. Continuous Discharge Current (A) | 200A | 200A |
| Max. Pulse Discharge Current (A) | 300A 1s | 300A 1s |
| Terminal | M8 | M8 |
| Storage & Safety | ||
| Storage Temperature | 0°C ~ 30°C | 0°C ~ 30°C |
| IP Degree | IP20 | IP20 |
| Storage Duration | 6 months @ 25°C | 6 months @ 25°C |
| Safety Standard | UN38.3, MSDS | UN38.3, MSDS |
| Display (Optional) | LCD | LCD |
| Communication Port (Optional) | CAN, RS485 | CAN, RS485 |
| Protection | ||
| Protection | Overcharge, Overdischarge, Overcurrent, Short-circuit, Overtemperature | |
| Ambient | ||
| Working Temperature | -10°C ~ +50°C | -10°C ~ +50°C |
| Humidity | 0–95% (no condensation) | 0–95% (no condensation) |
| Sea Level (m) | ≤1500 | ≤1500 |
| Dimension | ||
| Product Size (mm) | 800 × 450 × 286 | 800 × 450 × 286 |
| Package Size (mm) | 980 × 540 × 376 | 980 × 540 × 376 |
| N.W (Kg) | 118 | 118 |
| G.W (Kg) | 132 | 132 |
