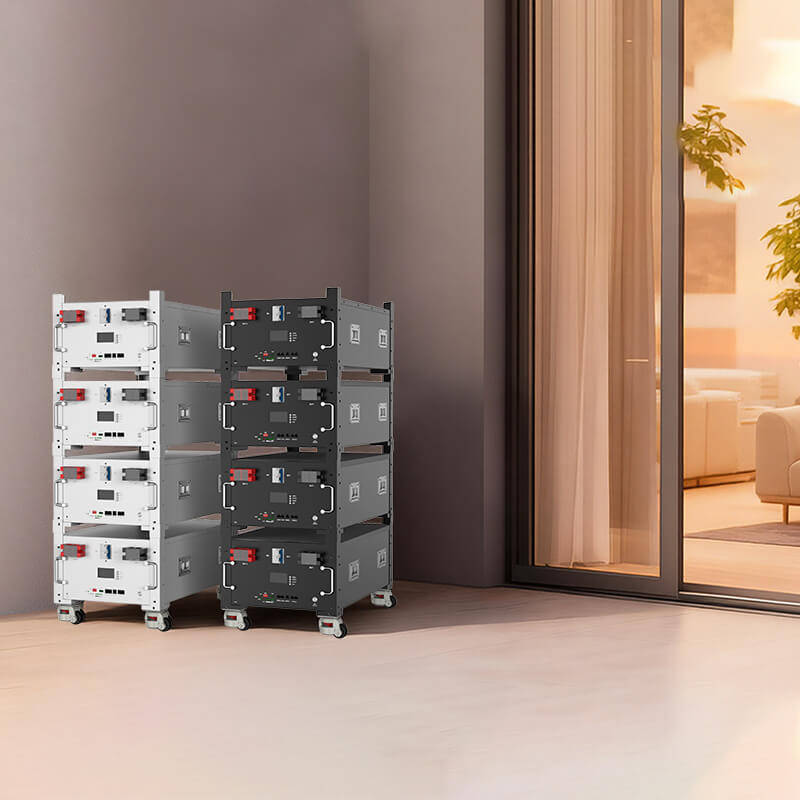

HC PLUS Rack Lithium Battery
The HC PLUS 51.2V rack-mounted LiFePO4 battery is designed for professional residential and commercial energy storage deployments requiring high reliability, long cycle life, and seamless system integration. Using Grade-A prismatic LiFePO4 cells, the unit offers excellent thermal stability and a cycle lifespan exceeding 6000 cycles at 80% DOD. The built-in intelligent BMS continuously monitors voltage, current, and temperature conditions, ensuring safe operation and real-time cell balancing. With CAN and RS485 communication, the HC PLUS 100Ah integrates directly with mainstream inverter ecosystems, including Deye, Growatt, GoodWe, Victron, SMA, SOFAR, LuxPower, and Voltronic.
HC PLUS Rack Lithium Battery
Main Features
- Standard 19-inch rack cabinet integration for clean ESS system layout
- 10.24kWh per module — suitable for whole-home energy storage
- Grade-A LiFePO4, 6000+ cycles, 10–12 year use expectancy
- High discharge capacity → supports HVAC, pumps, and inductive loads
- CAN / RS485 communication → plug-and-play with major inverter brands
- Easy parallel expansion → suitable for residential & commercial deployments
- Whole-home solar + battery hybrid storage
- Small business and shop backup power supply
- Server room / telecom relay / network edge nodes UPS backup
- Agricultural automation & irrigation pumping systems
- Remote & weak-grid regions where backup autonomy is required
- Distributed ESS fleets deployed by EPC and integrators
HC PLUS Rack Lithium Battery
Main Features
- Standard 19-inch rack cabinet integration for clean ESS system layout
- 10.24kWh per module — suitable for whole-home energy storage
- Grade-A LiFePO4, 6000+ cycles, 10–12 year use expectancy
- High discharge capacity → supports HVAC, pumps, and inductive loads
- CAN / RS485 communication → plug-and-play with major inverter brands
- Easy parallel expansion → suitable for residential & commercial deployments
- Whole-home solar + battery hybrid storage
- Small business and shop backup power supply
- Server room / telecom relay / network edge nodes UPS backup
- Agricultural automation & irrigation pumping systems
- Remote & weak-grid regions where backup autonomy is required
- Distributed ESS fleets deployed by EPC and integrators
The Technical Parameter of HC PLUS Rack Lithium Battery
| MODEL | HC PLUS Series 51.2V100Ah | HC PLUS Series 51.2V200Ah | HC PLUS Series 51.2V280Ah | HC PLUS Series 51.2V314Ah |
|---|---|---|---|---|
| Basic | ||||
| Case design | Rack-mounted | Rack-mounted | Rack-mounted | Rack-mounted |
| Battery Type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
| Nominal Battery Voltage (Vdc) | 51.2V | 51.2V | 51.2V | 51.2V |
| Nominal Capacity (Ah, 25°C 0.2C) | 100Ah | 100Ah × 2 pcs | 280Ah × 4 pcs | 314Ah × 4 pcs |
| Nominal Energy (Wh, 25°C 0.2C) | 5120Wh | 10240Wh | 57344Wh | 64307Wh |
| Float Charge Voltage (Vdc) | 56.0V | 56.0V | 56.0V | 56.0V |
| Operation Voltage Range (Vdc) | 40.0–58.4V | 40.0–58.4V | 40.0–58.4V | 40.0–58.4V |
| Current | ||||
| Max. Continuous Charge Current (A) | 50A | 100A | 200A | 400A |
| Max. Continuous Discharge Current (A) | 100A | 200A | 400A | 800A |
| Max. Pulse Discharge Current | 150A 1s | 300A 1s | 600A 1s | 1200A 1s |
| Terminal | M6 | M6 | M6 | M6 |
| Storage & Safety | ||||
| Storage Temperature | 0°C ~ 30°C | 0°C ~ 30°C | 0°C ~ 30°C | 0°C ~ 30°C |
| IP degree | IP20 | IP20 | IP20 | IP20 |
| Storage Duration | 6 months @ 25°C | 6 months @ 25°C | 6 months @ 25°C | 6 months @ 25°C |
| Safety Standard | UN38.3, MSDS | UN38.3, MSDS | UN38.3, MSDS | UN38.3, MSDS |
| Display | LCD | LCD | LCD | LCD |
| Communication Port (Optional) | CAN, RS485 | CAN, RS485 | CAN, RS485 | CAN, RS485 |
| Protection | ||||
| Protection | Overcharge, Overdischarge, Overcurrent, Short-circuit, Overtemperature | |||
| Ambient | ||||
| Working Temperature | -10°C ~ +50°C | -10°C ~ +50°C | -10°C ~ +50°C | -10°C ~ +50°C |
| Humidity | 0–95% (no condensation) | 0–95% (no condensation) | 0–95% (no condensation) | 0–95% (no condensation) |
| Sea Level (m) | ≤1500 | ≤1500 | ≤1500 | ≤1500 |
| Dimension | ||||
| Product Size (mm) | 565 × 440 × 132 | 565 × 440 × 132 × 2 pcs | 745 × 440 × 240 × 4 pcs | 745 × 440 × 240 × 4 pcs |
| Package Size (mm) | 645 × 520 × 192 | 645 × 520 × 192 × 2 pcs | 840 × 520 × 430 × 4 pcs | 840 × 520 × 430 × 4 pcs |
| N.W (Kg) | 45.0 | 45.0 × 2 pcs | 118 × 4 pcs | 118 × 4 pcs |
| G.W (Kg) | 48.0 | 48.0 × 2 pcs | 138 × 4 pcs | 138 × 4 pcs |

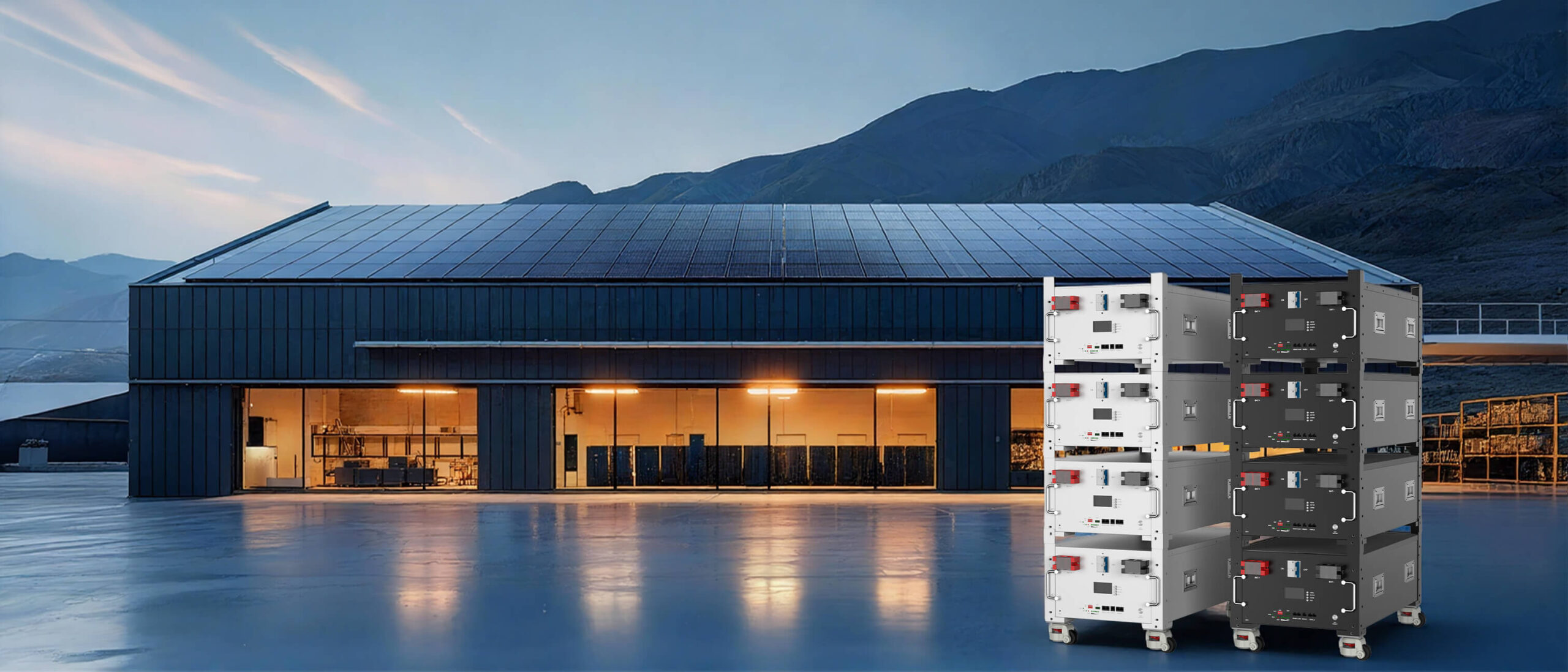

Designed in standard 19-inch rack format, it supports cabinet installation, parallel energy expansion, and efficient system maintenance — making it ideal for installers, EPC integrators, and distributors handling multi-site deployments. The HC PLUS 51.2V 100Ah provides stable discharge performance for daily cycling, peak power support, and backup power during grid outages.
Why Choose the HC Plus Series?
Installers / Distributors / EPC / Off-grid integrators
Stable Power Supply
Standard ack mount, suitable for ESS cabinets and data-style enclosures
Efficient Energy Use
Grade-A LiFePO4 cells, 6000+ cycles, long service life
Flexible Charging
Smart BMS with CAN / RS485 protocol compatibility
Battery Compatibility
Large capacity, supports parallel expansion to larger ESS systems
Easy Install
Quick installation, low after-sale service requirements
Widely Used
Suitable for residential, telecom, IoT, and small commercial ESS projects
