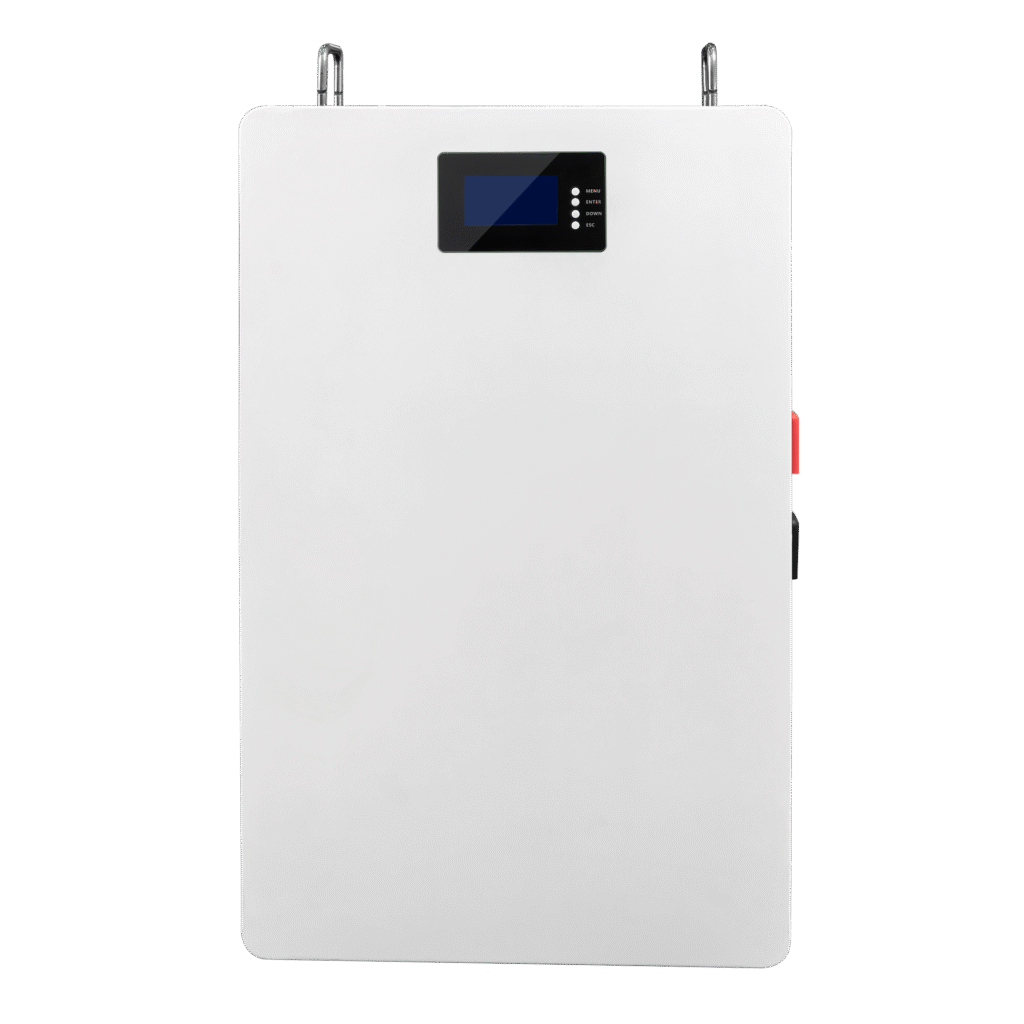

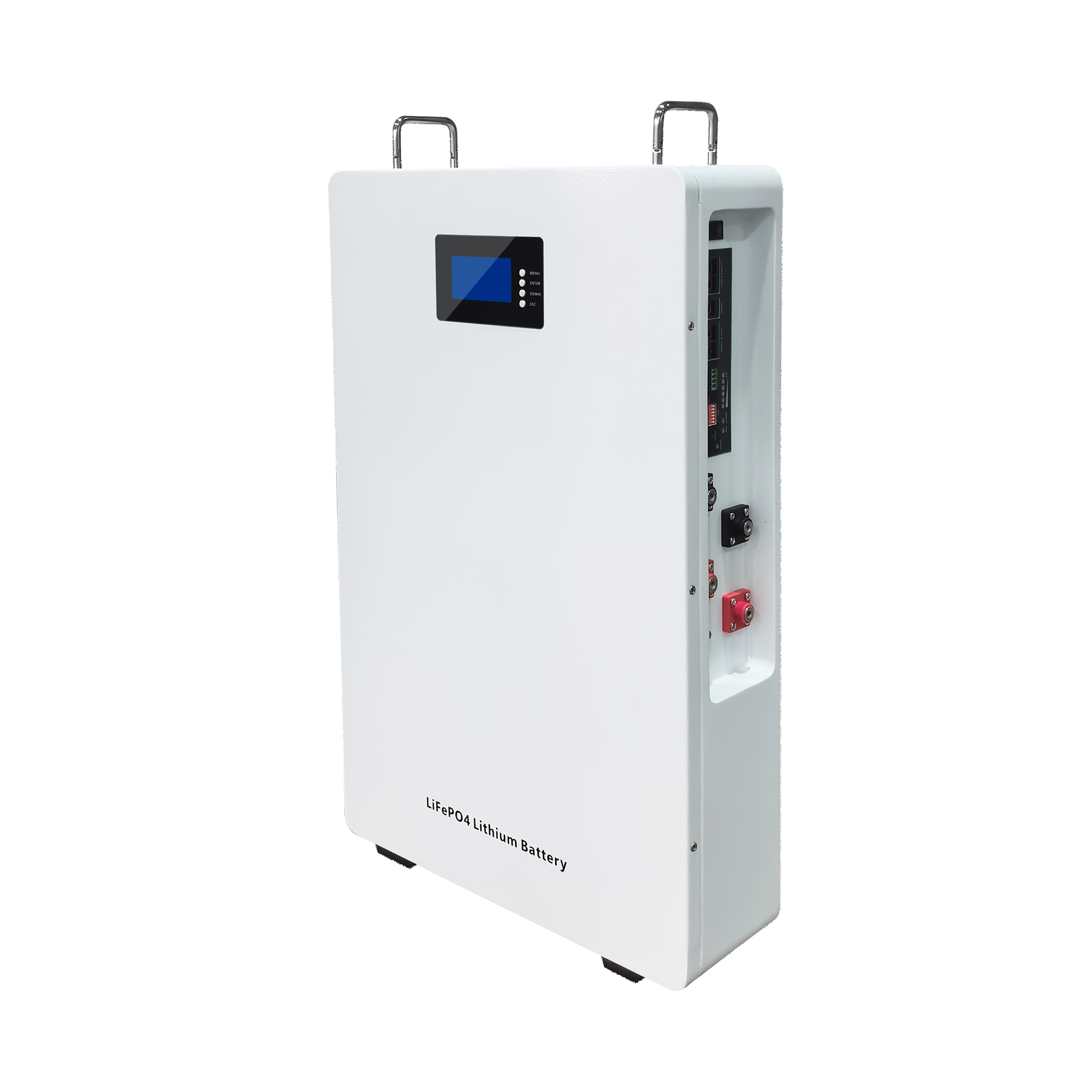

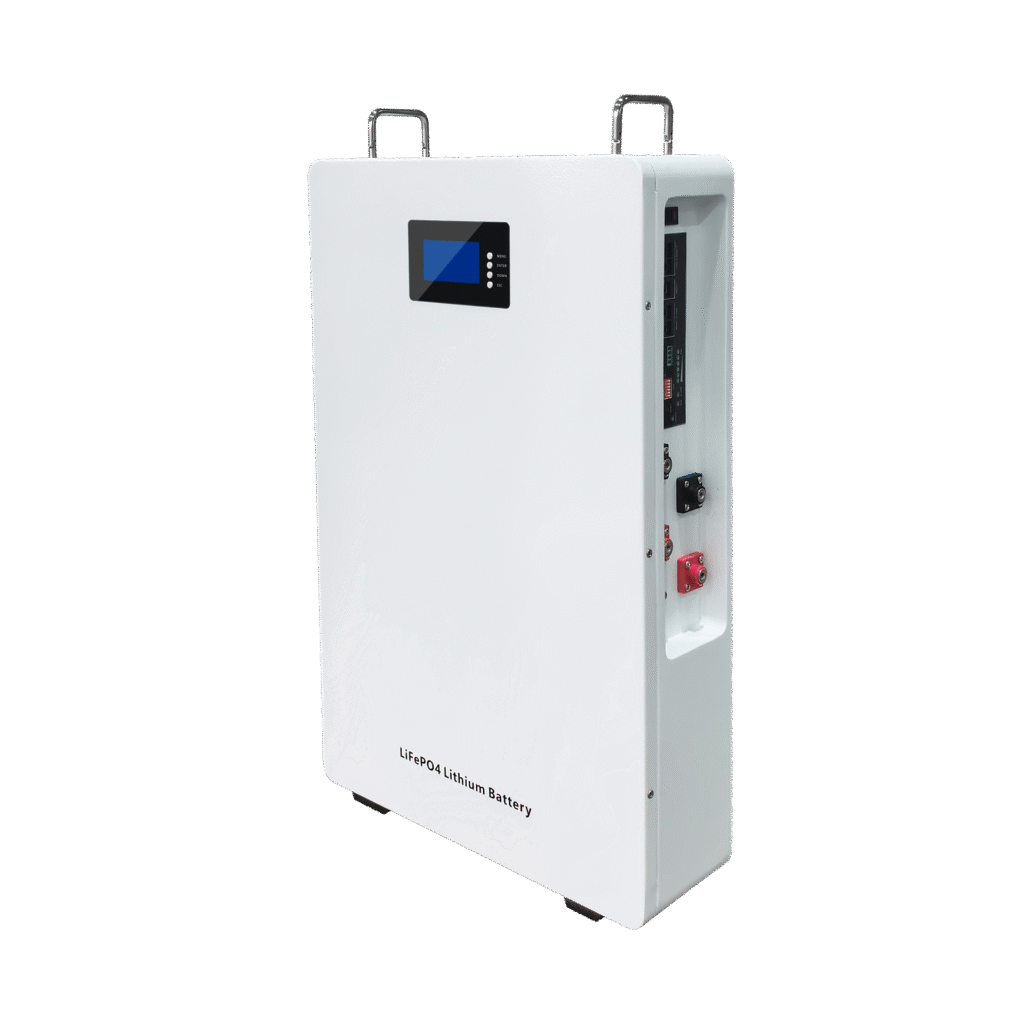

HA PRO WALL MOUNTED LITHIUM BATTERY
The HA PRO series is an enhanced wall-mounted lithium energy storage battery designed for long-term residential use. Built with high-grade LiFePO4 cells and optimized internal structure, it provides superior cycle life, stable output, and safer thermal characteristics. The integrated advanced BMS system provides full-range protection monitoring and supports communication protocols used by mainstream hybrid inverter brands such as Deye, Growatt, Voltronic, GoodWe, Victron, SMA, and SOFAR. This battery delivers quiet operation, high efficiency, and stable energy performance — ensuring that homes remain powered, comfortable, and self-sufficient.
HA 25.6V100Ah&200Ah/51.2V100Ah&200Ah
Main Features
- Long-life LiFePO4 cells, >6000 cycles, 10+ year design lifespan
- Smart BMS with real-time monitoring & automatic cell balancing
- High discharge capacity (up to 800A system output)
- Smart BMS with CAN / RS485 inverter protocol compatibility
- Application for an off-grid solar power system.
- An intelligent BMS is equipped inside to maintain the battery always working in the best condition
- Automatically output cut off after 30days, no charge, and discharge to ensure that it can also cut off the output by a manual operator
- Supports inverter communication protocols: Deye / Growatt / Victron / SMA / GoodWe / SOFAR / Voltronic
- 5-year warranty.10-year lifetime, LiFePO4 battery, more stable and safe
- Designed for professional installation & stable after-sales support
HA 25.6V100Ah&200Ah/51.2V100Ah&200Ah
Main Features
- Long-life LiFePO4 cells, >6000 cycles, 10+ year design lifespan
- Smart BMS with real-time monitoring & automatic cell balancing
- High discharge current up to 200A, supports heavy household loads
- Smart BMS with CAN / RS485 inverter protocol compatibility
- Application for an off-grid solar power system.
- An intelligent BMS is equipped inside to maintain the battery always working in the best condition
- Automatically output cut off after 30days, no charge, and discharge to ensure that it can also cut off the output by a manual operator
- Supports inverter communication protocols: Deye / Growatt / Victron / SMA / GoodWe / SOFAR / Voltronic
- 5-year warranty.10-year lifetime, LiFePO4 battery, more stable and safe
- Designed for professional installation & stable after-sales support
The Technical Parameter of HA 25.6V100Ah&200Ah/51.2V100Ah&200Ah
The HA PRO series is engineered for users requiring reliable daily energy storage, peak-shaving capability, and continuous backup power during grid failures. With higher discharge capability (up to 200A) and multiple voltage/capacity configurations, it is suitable for both new solar storage installations and upgrades from lead-acid or older lithium systems.
| MODEL | HA PRO Series 25.6V100Ah | HA PRO Series 25.6V200Ah | HA PRO Series 51.2V100Ah | HA PRO Series 51.2V200Ah |
|---|---|---|---|---|
| Case design | Wall mounted | Wall mounted | Wall mounted | Wall mounted |
| Battery Type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
| Normal Battery Voltage (Vdc) | 25.6V | 25.6V | 51.2V | 51.2V |
| Normal Capacity (Ah) @25℃ 0.2C | 100Ah | 200Ah | 100Ah | 200Ah |
| Normal Capacity (Wh) | 2560Wh | 5120Wh | 5120Wh | 10240Wh |
| Float Charge Voltage (Vdc) | 28.0V | 28.0V | 56.0V | 56.0V |
| Operation Voltage range (Vdc) | 20.0–29.2V | 20.0–29.2V | 40.0–58.4V | 40.0–58.4V |
| Max. Continuous Charge Current (A) | 50A | 100A | 50A | 100A |
| Max. Continuous Discharge Current (A) | 100A | 200A | 100A | 200A |
| Max. Pulse Discharge Current (A) | 150A 1Sec | 300A 1Sec | 150A 1Sec | 300A 1Sec |
| Terminal | M6 | M8 | M6 | M8 |
| Storage temperature | 0℃ ~ 30℃ | 0℃ ~ 30℃ | 0℃ ~ 30℃ | 0℃ ~ 30℃ |
| IP degree | IP20 | IP20 | IP20 | IP20 |
| Storage duration | 6 Months at 25℃ | 6 Months at 25℃ | 6 Months at 25℃ | 6 Months at 25℃ |
| Safety standard | UN38.3, MSDS | UN38.3, MSDS | UN38.3, MSDS | UN38.3, MSDS |
| Display (Optional) | LCD | LCD | LCD | LCD |
| Communication Port (Optional) | CAN, RS485 | CAN, RS485 | CAN, RS485 | CAN, RS485 |
| PROTECTION | ||||
| Protection | Overcharge protection, Overdischarge protection, Overcurrent protection, Short-circuit protection, Overtemperature protection | |||
| AMBIENT | ||||
| Working Temperature | −10℃ ~ +50℃ | −10℃ ~ +50℃ | −10℃ ~ +50℃ | −10℃ ~ +50℃ |
| Humidity | 0–95% (no condensation) | 0–95% (no condensation) | 0–95% (no condensation) | 0–95% (no condensation) |
| Sea Level (m) | ≤1500 | ≤1500 | ≤1500 | ≤1500 |
| DIMENSION | ||||
| Products size (mm) | 460×410×139 | 660×410×139 | 660×410×139 | 880×660×160 |
| Package size (mm) | 540×490×219 | 740×490×219 | 740×490×219 | 960×740×240 |
| N.W (Kg) | 25.0 | 44.2 | 44.2 | 88 |
| G.W (Kg) | 29.0 | 46.9 | 46.9 | 103 |
