The ESS HV 50KW 100KWH INDUSTRIAL&COMMERCIAL ENERGY STORAGE SYSTEM is the ultimate energy storage solution for large enterprises and industrial users who demand maximum power, efficiency, and reliability.
The Features of ESS HV 50KW 100KWH INDUSTRIAL&COMMERCIAL ENERGY STORAGE SYSTEM
Hospital
Available
Office
Available
Pure Sine Wave
Pure Sine Wave
Gas Station
Available
Grid
Feed-in to Grid
Generator
Workable with Generator
MPPT
Wide MPPT Range 200-800V
Monitoring
Monitoring
The Technical Parameter of ESS HV 50KW 100KWH INDUSTRIAL&COMMERCIAL ENERGY STORAGE SYSTEM
| Model | ESS HV 50KW+100KWH |
|---|---|
| Battery Parameters | |
| Maximum Battery Voltage | 850V |
| Minimum Battery Voltage | 200V |
| Rated Battery Voltage Range | 410V–850V |
| Maximum Battery Current | 150A |
| PV Parameter | - |
| Maximum PV Current | 64A + 64A |
| Maximum PV Voltage | 850V |
| Maximum PV Power | 38.4kW + 38.4kW |
| PV Startup Voltage | 250V |
| MPPT Voltage Range | 200V–800V |
| AC Side (Grid Connected) | |
| Rated Power | 50kVA |
| Rated Current | 72.5A |
| Rated Grid Voltage | 400V / 230V |
| Voltage Range of Power Grid | –20% ~ +15% |
| Start the Impulse Current | 10.2A |
| Grid Frequency Range | 50Hz (47–52Hz) / 60Hz (57–62Hz) |
| Current Harmonics | <3% |
| Power Factor | ~1 |
| AC Side (Off Grid) | |
| Rated Output Power | 50kVA |
| Maximum Output Power | 55kVA |
| Maximum Output Current | 80A |
| Rated Voltage | 400V / 230V |
| Output Voltage Harmonics | <3% |
| Imbalance | 100% |
| Overload | 1.1× long-term / 1.25× 100s / 1.5× 100ms |
| System Parameter | |
| Off Grid Switching Time | <10ms |
| Maximum Efficiency | 98.2% |
| Power Consumption | Standby < 20W / No load < 160W |
| Protection Grade | IP20 (Core Control Part IP5X) |
| Battery | |
| Nominal Battery Voltage | 358.4VDC |
| Rated Energy | 100kWh (0.5C, 25°C) |
| Usable Energy (90%DOD) | 90kWh |
| Max. Charge / Discharge Current | 150A / 150A |
| Operation Voltage Range | 324.8VDC – 392VDC |
| Operation Temperature | –10°C ~ +50°C |
| Humidity | 5–95% |
| Cooling Method | Intelligent Air Cooling |
Why Choose the ESS HV 50KW 100KWH INDUSTRIAL&COMMERCIAL ENERGY STORAGE SYSTEM?
- High-voltage battery architecture (200–850V) for reduced transmission loss and improved PCS efficiency
- 50kVA rated output with stable frequency and low harmonic distortion (<3%)
- 100kWh LiFePO4 battery with 90kWh usable energy (90% DOD)
- Dual MPPT with wide 200–800V operating range for flexible PV string design
- Fast switching (<10ms) between grid and off-grid modes
- Integrated EMS + BMS for centralized monitoring and fault isolation
- 150A charge/discharge capability, supporting high load response
- IP20 cabinet, core control part IP5X, designed for commercial indoor environments
- Wide operating temperature: –10°C to +50°C
- Intelligent air-cooling system for stable long-term operation
Why Choose the INV 3600-24 SINGLE PHASE ON/OFF-GRID SOLAR INVERTER?
Designed for large-scale commercial and industrial applications, it supports sustainable development, reduces energy costs, and ensures long-lasting independence from the grid.
Massive Power Output
With 50kVA rated power and up to 100KWh lithium battery storage, this system is tailored for factories, large commercial facilities, and industrial users with heavy energy demand
Extended Backup Duration
Provides 90KWh usable energy (90%DOD), ensuring long-term energy autonomy and uninterrupted operation even during prolonged grid outages
High Solar Utilization
Dual MPPT inputs supporting 38.4kW + 38.4kW PV capacity and a wide 200–800V MPPT range maximize solar harvesting efficiency
Seamless Switching
Fast transfer time (<10ms) guarantees stable operation for critical loads, protecting sensitive equipment from interruptions
Industrial-Grade Reliability
Equipped with overload protection, wide voltage adaptability, intelligent air cooling, and IP20/IP5X protection for safe, long-term operation in demanding environments
Superior Efficiency
Achieves up to 98.2% maximum efficiency with current harmonics <3% and power factor range of -1~1, reducing energy loss and maintaining grid stability

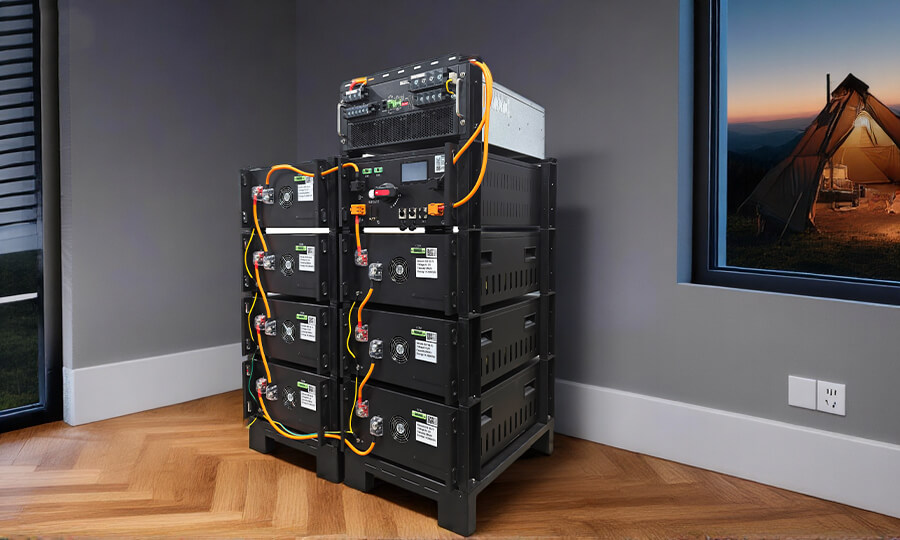

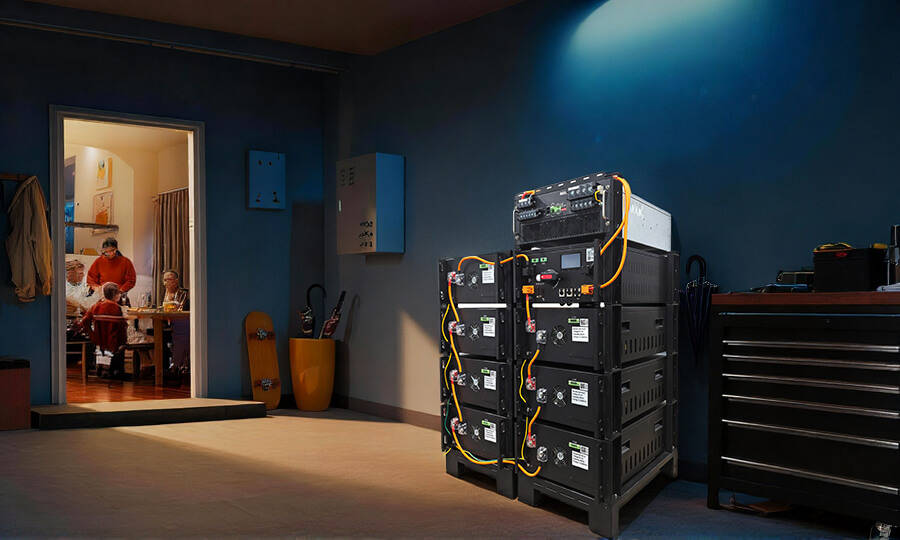

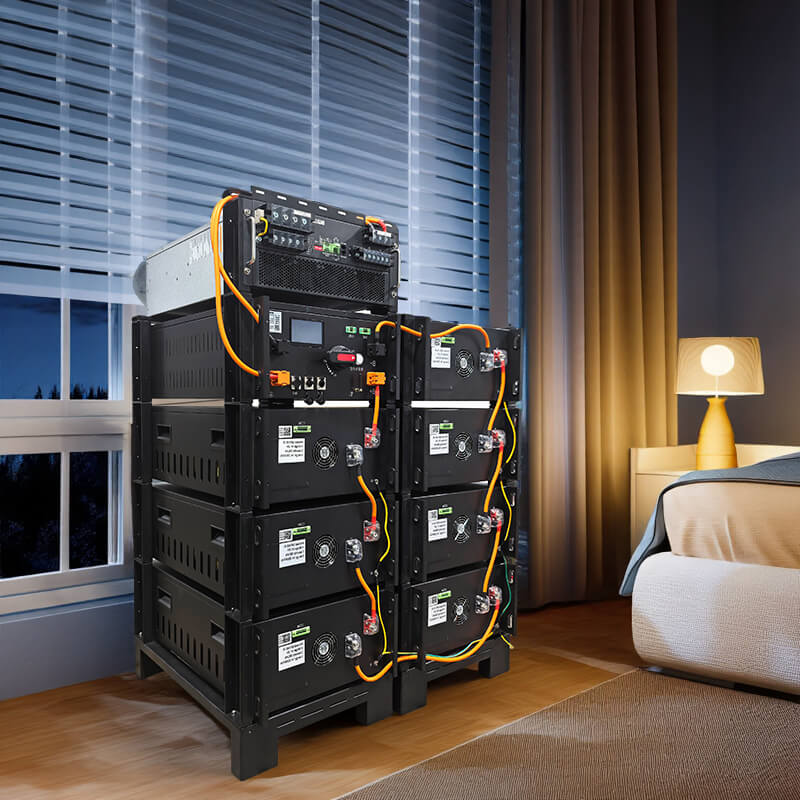

The ESS HV 50KW 100KWH INDUSTRIAL&COMMERCIAL ENERGY STORAGE SYSTEM product adopts an integrated energy storage cabinet as the carrier of the energy storage system, with a modular design that integrates a set of iron phosphate battery cabinets, battery management system BMS, energy storage inverter PCs, local control system ES, fire protection, and other equipment into the integrated cabinet. It can be flexibly deployed in various industrial and commercial application scenarios to help enterprises reduce electricity costs. You could contact us to get a quotation or get a free all-in-one solution for an inverter battery
