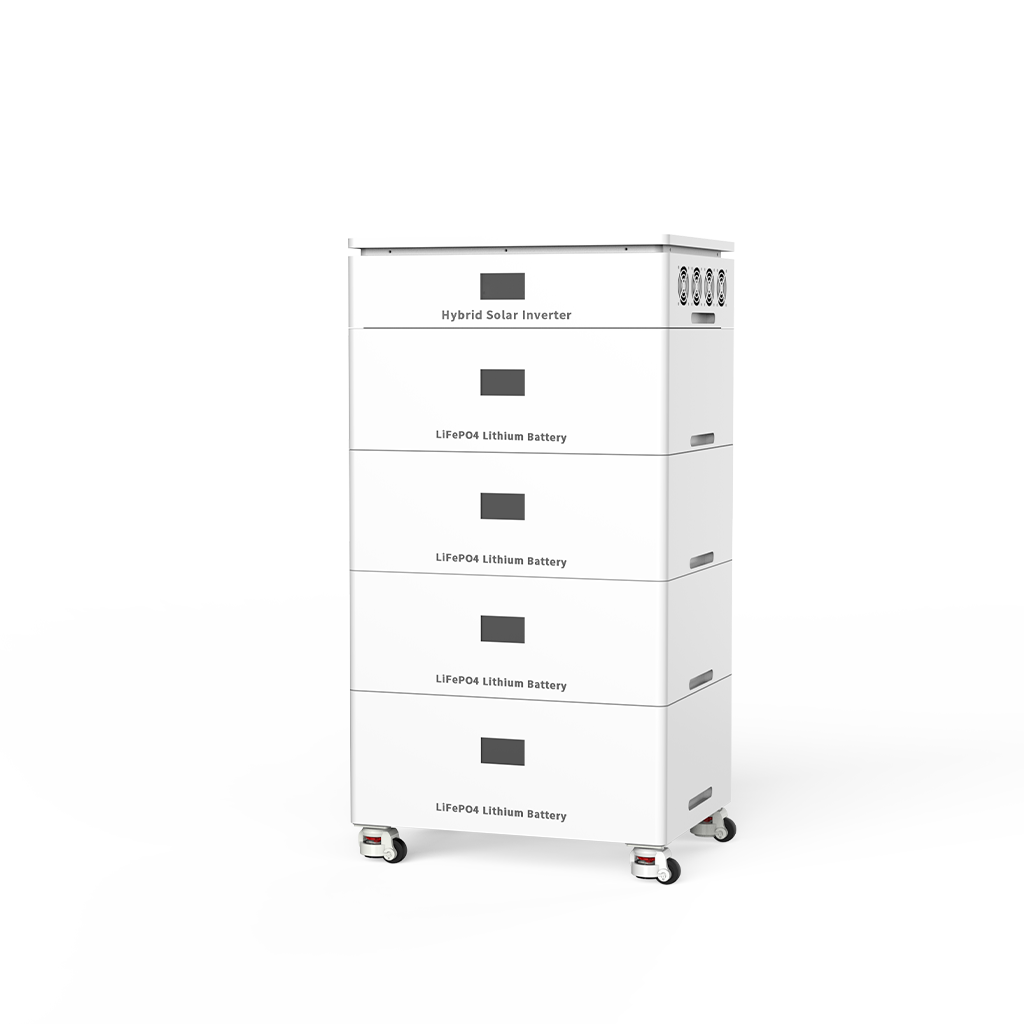

The ESS 10KW 30KWH STACKABLE ALL-IN-ONEINVERTER & BATTERY SYSTEM is the perfect choice for users who want powerful performance, reliable backup, and long-term savings in one system.
The Features of ESS 10KW 30KWH STACKABLE ALL-IN-ONEINVERTER & BATTERY SYSTEM
BMS
Support Lithium/Lead-acid Battery
Photovoltaic
MAX.PV 15KW
DUAL
Dual AC Output
BMS
Built-in Solar Charger
Grid
Feed-in to Grid
Generator
Workable with Generator
MPPT
Wide MPPT Range 120-520V
Monitoring
WiFi Monitoring
The Technical Parameter of ESS 10W 30KWH STACKABLE ALL-IN-ONEINVERTER & BATTERY SYSTEM
| Item | Specification |
|---|---|
| AC Input | |
| Rated Input Voltage (VAC) | 220 / 230 / 240; L+N+PE |
| Voltage Range (VAC) | 90~280±3 (normal mode); 170~280±3 (UPS mode) |
| Frequency (Hz) | 50Hz / 60Hz (Auto detection) |
| AC Output | |
| Rated Capacity (W) | 10000W |
| Surge Power (VA) | 20000VA |
| Voltage (VAC) | 220 / 230 / 240 |
| Power Factor (PF) | 1 |
| Frequency | 50 / 60Hz ±0.1% |
| Switch Time (ms) | 10 (APP/UPS mode), 20 (GEN mode) |
| Wave Form | Pure Sine Wave |
| Overload Protection | (105% < load <110%) ±5%: report error and turn off the output after 5 minutes; (110% < load <125%) ±5%: report error and turn off the output after 10 seconds; Load >125% ±5%: report error and turn off the output after 5 seconds |
| Max. Efficiency (Battery Mode) | 94% @ 48VDC |
| Charger (PV / AC) | |
| Solar Charger Type | Dual MPPTs |
| Max PV Input Current / Power | 1*MPPT: 27A / 9kW, 2*MPPTs: 22.5A / 15kW |
| Operating Voltage Range (VDC) | 90Vdc–485Vdc |
| Max PV Open Circuit Voltage (VDC) | 500Vdc |
| Max PV Charge Current (A) | 160A |
| Max AC Charge Current (A) | 160A |
| Max Charge Current (PV + AC) (A) | 160A |
| Battery | |
| Nominal Battery Voltage | 51.2VDC |
| Rated Energy | 15360Wh × 2 |
| Usable Energy (90%DOD) | 30kWh |
| Max Charge / Discharge Current | 200A / 200A |
| Operation Voltage Range | 44.8Vdc–58.4Vdc |
| Operating Temperature | -10°C ~ +50°C |
| Interface | |
| Display | LCD |
| Communication | RS485 / RS232 / USB / Dry Contact |
| Monitoring | WiFi |
| General Data | |
| Ingress Protection | IP21 |
| Operating Temperature | -10°C ~ +50°C |
| Relative Humidity | 5% ~ 95% (Non-condensing) |
| Storage Temperature | -15°C ~ +60°C |
| Max Operating Altitude | 4000m (Derating above 1000m) |
| Dimension | |
| Product Size (mm) | Inverter: 680 × 520 × 182 mm / Battery: 680 × 520 × 246 mm (1PCS) |
| Package Size (mm) | Inverter: 736 × 576 × 336 mm / Battery: 680 × 520 × 444 mm (1PCS) |
Why Choose the ESS 10W 30KWH STACKABLE ALL-IN-ONEINVERTER & BATTERY SYSTEM
Strong and Reliable Power – With 10KW rated capacity and 30KWH lithium battery storage, this system delivers stable energy for medium-to-large homes, offices, and small businesses.
Efficient Solar Utilization – Dual MPPTs with wide 90–485Vdc range and efficiency up to 94%@48VDC maximize solar harvesting and minimize energy loss.
Seamless Backup Power – Fast switching (10ms in UPS mode) ensures uninterrupted power supply for critical devices.
Smart Monitoring – Equipped with LCD display, RS485/RS232/USB/Dry Contact, and WiFi monitoring for real-time control and easy integration.
Cost-Effective Investment – A practical balance of power and storage capacity makes it an ideal solution for families and businesses seeking reliable energy independence.
The ESS 10W 30KWH STACKABLE ALL-IN-ONE INVERTER & BATTERY SYSTEM is the ideal choice for households and small businesses to achieve energy independence and sustainable living. You could contact us to get a quotation or get a free all-in-one solution for an inverter battery
