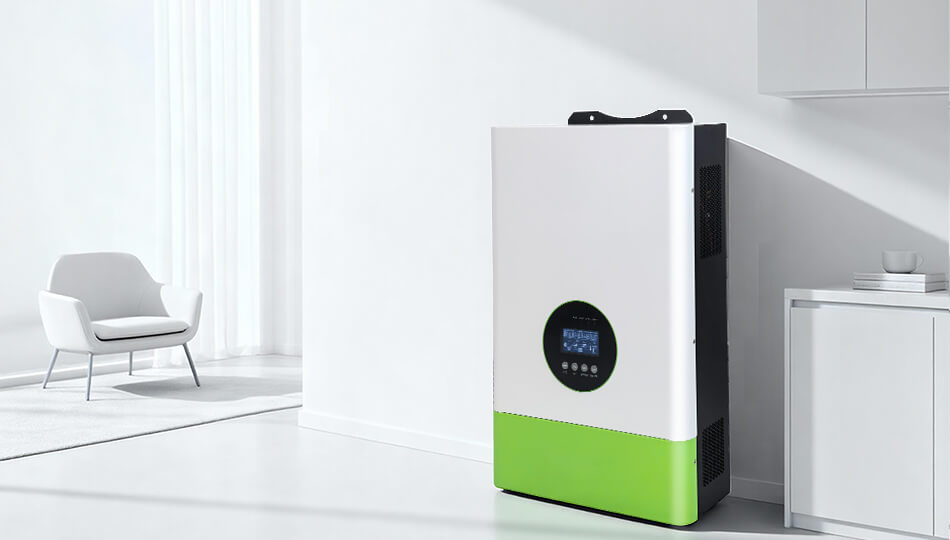

The 48V hybrid inverter 8.2kW Hybrid Solar Inverter is engineered for systems with tiered load distribution, enabling critical loads and general loads to be powered separately. With the ability to accept up to 10.8kW of solar input, it efficiently reduces grid power dependence. It is ideal for large homes, small commercial buildings, telecommunications sites, and workshops requiring sustained and stable power.
The Features of 48V hybrid inverter 8.2kW Hybrid Solar Inverter
BMS
Support Lithium/Lead-acid Battery
Parallel
9 Inverter in Parallel
Solar
Built-in 80A Solar Charger
Activation
Lithium Battery Activation
Grid
Feed-in to Grid
Generator
Workable with Generator
MPPT
Wide MPPT Range 120-500V
Monitoring
WiFi Monitoring
BMS
Support Lithium/Lead-acid Battery
Parallel
9 Inverter in Parallel
Solar
Built-in 80A Solar Charger
Activation
Lithium Battery Activation
Grid
Feed-in to Grid
Generator
Workable with Generator
MPPT
Wide MPPT Range 120-500V
Monitoring
WiFi Monitoring
The Technical Parameter of 48V hybrid inverter 8.2kW Hybrid Solar Inverter
| Item | Specification |
|---|---|
| AC Input | |
| Rated Input Voltage (VAC) | 208 / 220 / 230 / 240; L + N + PE |
| Voltage Range (VAC) | 90~280±3 (normal mode); 170~280±3 (UPS mode) |
| Frequency (Hz) | 50 / 60 (Auto Adaptive) |
| AC Output | |
| Rated Capacity (kW) | 8.2 |
| Surge Power (kVA) | 16.4 |
| Output Voltage (VAC) | 208 / 220 / 230 / 240 |
| Power Factor (PF) | 1 |
| Output Frequency | 50 / 60Hz ±0.1% |
| Switch Time (ms) | 10 (normal mode) / 10 (UPS mode) |
| Wave Form | Pure Sine Wave |
| Overload Protection (Battery Mode) | 10min@102%~120% load, 1min@120%~150% load, 10s@150%~200% load, 5s@>200% load |
| Max. Efficiency (Battery Mode) | 93% @ 48VDC |
| Parallel Quantity | N/A |
| Charger (PV / AC) | |
| Solar Charger Type | MPPT |
| Max PV Input Current / Power | 30A / 10.8kW |
| Operating Voltage Range (VDC) | 60~450 |
| Max PV Open Circuit Voltage (VDC) | 500 |
| Max PV Charge Current (A) | 120 |
| Max AC Charge Current (A) | 120 |
| Max Charge Current (PV + AC) (A) | 120 |
| Battery | |
| Nominal Battery Voltage | 48VDC |
| Floating Charge Voltage (VDC) | 56 |
| Overcharge Protection (VDC) | 60 |
| Battery Type | Lithium and Lead-acid |
| Interface | |
| Display | LCD |
| Communication | RS485 / USB / Dry Contact / CT / Meter |
| Monitoring | WiFi (Optional) |
| General Data | |
| Ingress Protection | IP21 |
| Operating Temperature | -10°C ~ +50°C |
| Relative Humidity | 5% ~ 95% (Non-condensing) |
| Storage Temperature | -15°C ~ +60°C |
| Net / Gross Weight (kg) | 14.2 / 15.7 |
| Dimension | |
| Product Size (mm) | 390 × 530 × 130 |
| Package Size (mm) | 470 × 610 × 210 |
| Max Operating Altitude | 4000m (Derating above 1000m) |

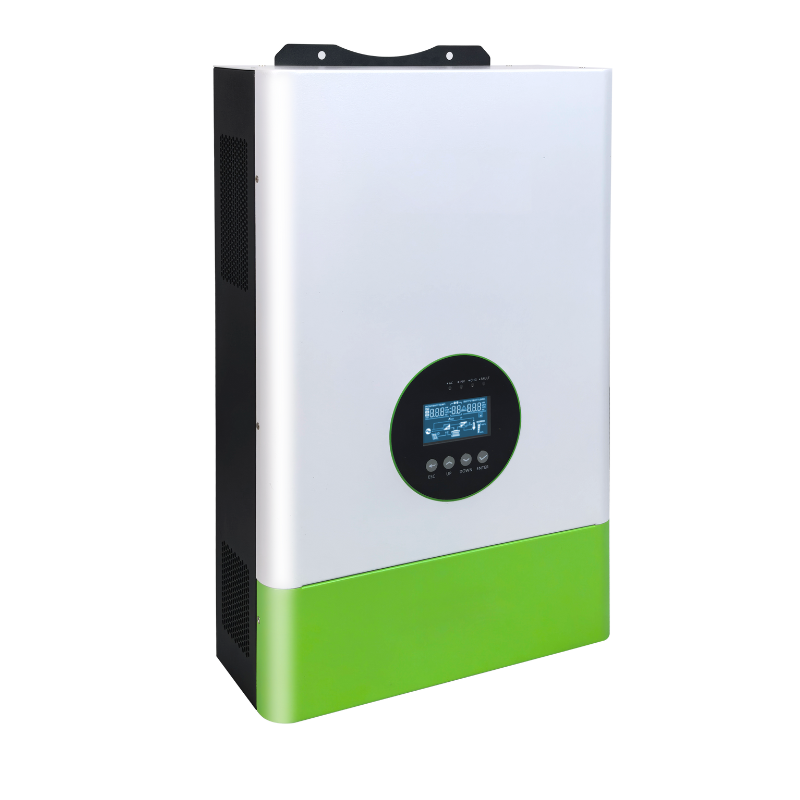

48V hybrid inverter 8.2kW ( SINGLE PHASE ON/OFF-GRID SOLAR INVERTER)
- Dual output ports for priority load management
- Large solar PV handling capability (up to 10.8kW)
- Intelligent BMS communication enhances battery lifespan
- Durable power supply ideal for industrial-grade loads
- Supports grid-tied, off-grid, and hybrid modes seamlessly
Why Choose the INV 8200-48 Hybrid Solar Inverter?

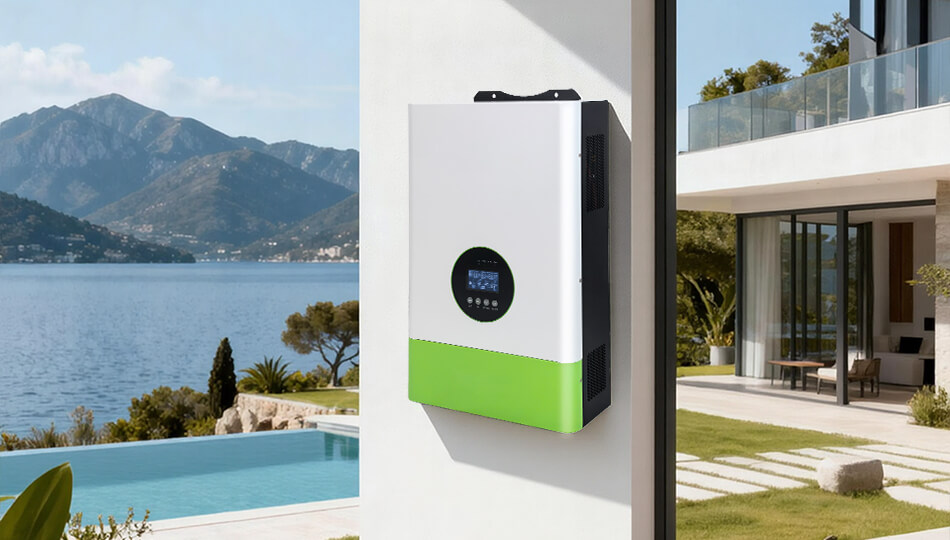

Used in residential-villa power distribution systems requiring separation of critical and non-critical loads. Also fits small industrial workshops, telecom base stations, medium-sized commercial buildings, community energy centers, and medical/street lighting backup systems.
High Power Output
Provides 8.2kW rated capacity and 16.4kVA surge power with pure sine wave output, ensuring stable operation of demanding loads
Advanced Solar Integration
MPPT controller supports up to 10.8kW PV input, a wide 60–450V range, and 30A current for maximum solar utilization
Smart Battery Management
Compatible with lithium and lead-acid batteries, with a floating charge at 56V and overcharge protection at 60V
High Efficiency
Reaches up to 93% efficiency at 48VDC, reducing energy loss and optimizing system performance
Comprehensive Monitoring
LCD plus RS485, USB, Dry Contact, CT, and Meter interfaces, with optional WiFi for remote management
Durable & Reliable
IP21 protection, wide temperature tolerance (-10 °C to +50 °C), and robust design ensure reliable operation even at high altitudes (up to 4,000 m)
INV 8200-48 SINGLE PHASE ON/OFF-GRID SOLAR INVERTER delivers 8.2kW pure sine wave power with 10.8kW MPPT solar charging: high efficiency, battery compatibility, and smart monitoring. Contact us today for a quotation or request your free inverter & battery solution.
