The 12KW on/off-grid 48V hybrid inverter features dual MPPT tracking, supporting up to 15kW of solar power input for maximum performance. Tailored for commercial, industrial, and mini-grid energy systems, it ensures high efficiency and stable long-term operation, making it ideal for areas with unstable grid supply.
12KW on/off-grid 48V hybrid inverter
BMS
Support Lithium/Lead-acid Battery
MAX.PV
MAX.PV 15KW
Solar
Built-in 80A Solar Charger
DUAL
Dual AC Output
Grid
Feed-in to Grid
Generator
Workable with Generator
MPPT
Wide MPPT Range 60-450V
Monitoring
WiFi Monitoring
BMS
Support Lithium/Lead-acid Battery
MAX.PV
MAX.PV 15KW
Solar
Built-in 80A Solar Charger
DUAL
Dual AC Output
Grid
Feed-in to Grid
Generator
Workable with Generator
MPPT
Wide MPPT Range 60-450V
Monitoring
WiFi Monitoring
The Technical Parameter of 12KW on/off-grid 48V hybrid inverter
| Item | Specification |
|---|---|
| AC Input | |
| Rated Input Voltage (VAC) | 220 / 230 / 240; L + N + PE |
| Voltage Range (VAC) | 90~280±3 (normal mode); 170~280±3 (UPS mode) |
| Frequency (Hz) | 50 / 60 (Auto Adaptive) |
| AC Output | |
| Rated Capacity (kW) | 12 |
| Surge Power (kVA) | 24 |
| Output Voltage (VAC) | 220 / 230 / 240 |
| Power Factor | 1 |
| Output Frequency | 50 / 60Hz ±0.1% |
| Switch Time (ms) | 10 (APP/UPS mode), 20 (GEN mode) |
| Wave Form | Pure Sine Wave |
| Overload Capacity (Battery Mode) | 1 min @ 102%–125% load; 10 s @ ≥125% load |
| Max. Efficiency (Battery Mode) | 94% @ 48VDC |
| Parallel Quantity | N/A |
| Charger (PV / AC) | |
| Solar Charger Type | Dual MPPTs |
| Max PV Input Current / Power | Using one MPPT: 27A / 9kW; Using two MPPTs: 22.5A per MPPT, 15kW total |
| MPPT Range @ Operating Voltage (VDC) | 60–450 |
| Max PV Open Circuit Voltage (VDC) | 500 |
| Max PV Charge Current (A) | 160 |
| Max AC Charge Current (A) | 160 |
| Max Charge Current (PV + AC) (A) | 160 |
| Battery | |
| Rated Voltage (VDC) | 50 |
| Floating Charge Voltage (VDC) | 54 |
| Overcharge Protection (VDC) | 61 |
| Battery Type | Lithium and Lead-acid |
| Interface | |
| Display (HMI) | LCD |
| Communication | RS232 / RS485 / USB |
| Monitoring | WiFi (optional: none / built-in / external) |
| General Data | |
| Ingress Protection | IP21 |
| Operating Temperature | -10°C ~ +60°C |
| Relative Humidity | 5% ~ 95% (Non-condensing) |
| Storage Temperature | -15°C ~ +60°C |
| Net / Gross Weight (kg) | 24.2 / 26.0 |
| Dimension | |
| Product Size (W×H×D, mm) | 620 × 450 × 132 |
| Package Size (W×H×D, mm) | 700 × 530 × 210 |
| Max. Operating Altitude | 4000m (Derating above 1000m) |

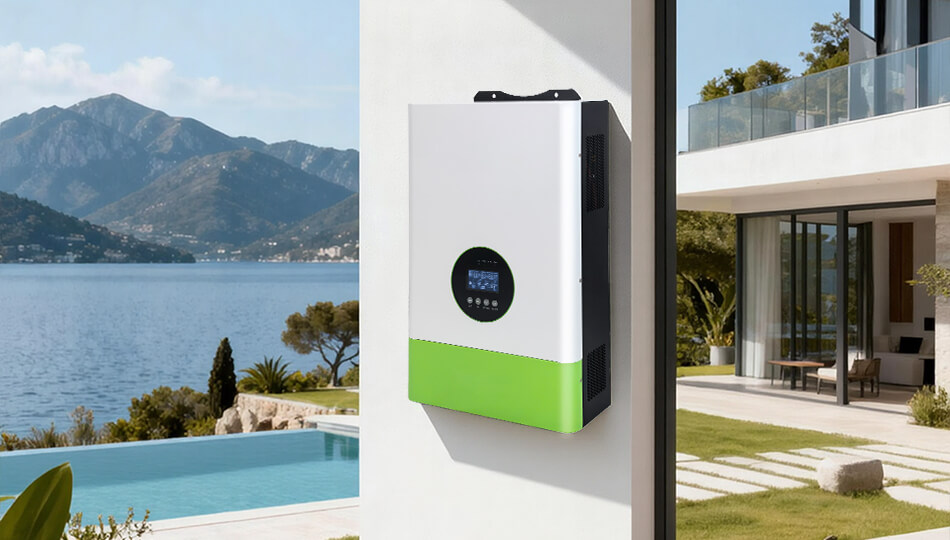

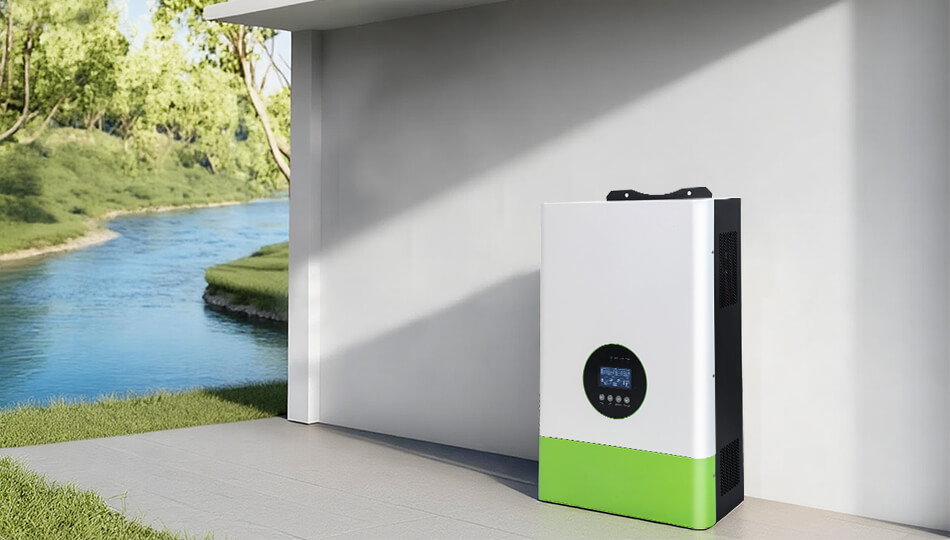

12KW on/off-grid 48V hybrid inverter
- Supports large-scale PV input for energy independence
- Dual MPPT design optimizes panel efficiency
- High conversion efficiency reduces energy waste
- Wide compatibility with major LiFePO4 battery brands
- Suitable for micro-grid and C&I solar storage projects
Why Choose the INV 3600-24 SINGLE PHASE ON/OFF-GRID SOLAR INVERTER?
Suitable for commercial and industrial-grade solar storage applications, energy independence projects, micro-grid power stations, charging stations, farm processing plants, and remote mining operations. Also optimal for public facilities such as temples, local government buildings, and emergency disaster relief stations.
High Power Capacity
Provides 12kW rated output and 24kVA surge power with pure sine wave, ideal for heavy residential and commercial loads
Advanced MPPT Technology
Dual MPPT design supports up to 15kW PV input with a wide 60–450V range, ensuring optimal solar utilization and efficiency
Smart Battery Management
Works with lithium and lead-acid batteries, with 54V floating charge and 61V overcharge protection to maximize battery life
Reliable Performance
High conversion efficiency of 94%@48VDC, wide operating temperature range (-10℃ to +60℃), and IP21 protection
Comprehensive Monitoring
LCD HMI, RS232/RS485/USB communication, plus optional WiFi (built-in or external) for flexible system monitoring
Durable & Compact Design
Rugged build, efficient cooling, and altitude tolerance up to 4000m ensure long-term reliable operation
INV 12000-48 SINGLE PHASE ON/OFF-GRID SOLAR INVERTER delivers 12kW pure sine wave output with dual MPPT solar charging up to 15kW: high efficiency, smart monitoring, and battery compatibility. Contact us today for a quotation or request your free inverter & battery solution.
