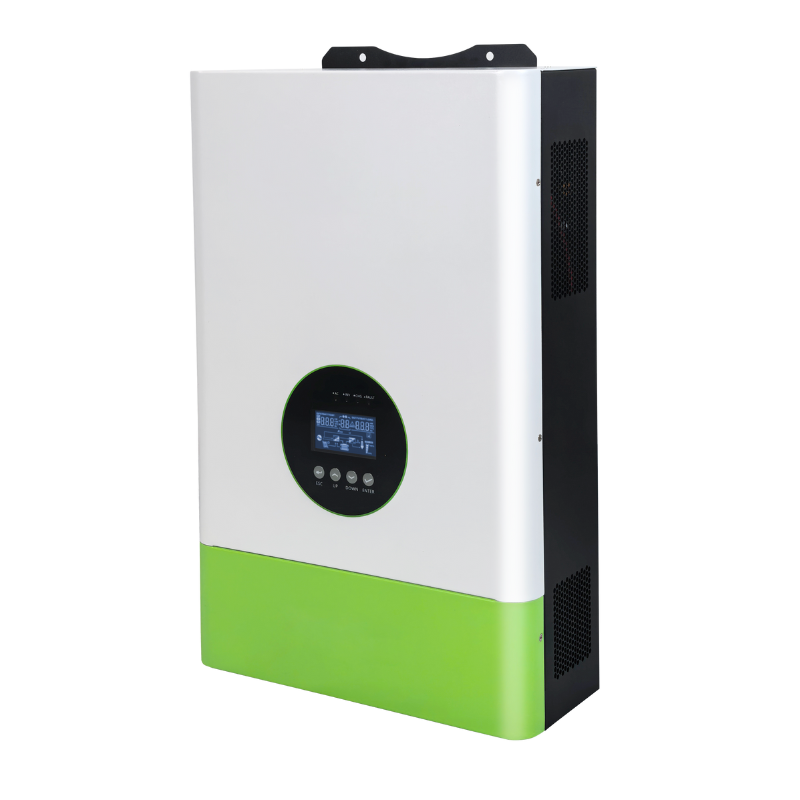

The 10.2KW 48V hybrid solar inverter delivers high power output for full-house backup systems, with seamless switching and strong load support for air conditioners, pumps, and heating appliances. Designed for villas, farms, schools, and commercial spaces requiring stable power, it significantly reduces energy expenses and increases renewable energy utilization.
The Features of 10.2KW 48V hybrid solar inverter
BMS
Support Lithium/Lead-acid Battery
DUAL
Dual AC Output
Solar
Built-in 80A Solar Charger
Activation
Lithium Battery Activation
Grid
Feed-in to Grid
Generator
Workable with Generator
MPPT
Wide MPPT Range 120-500V
Monitoring
WiFi Monitoring
BMS
Support Lithium/Lead-acid Battery
DUAL
Dual AC Output
Solar
Built-in 80A Solar Charger
Activation
Lithium Battery Activation
Grid
Feed-in to Grid
Generator
Workable with Generator
MPPT
Wide MPPT Range 120-500V
Monitoring
WiFi Monitoring
The Technical Parameter of 10.2KW 48V hybrid solar inverter
| Item | Specification |
|---|---|
| AC Input | |
| Rated Input Voltage (VAC) | 208 / 220 / 230 / 240; L + N + PE |
| Voltage Range (VAC) | 90~280±3 (normal mode); 170~280±3 (UPS mode) |
| Frequency (Hz) | 50 / 60 (Auto Adaptive) |
| AC Output | |
| Rated Capacity (kW) | 10.2 |
| Surge Power (kVA) | 20.4 |
| Output Voltage (VAC) | 208 / 220 / 230 / 240 |
| Power Factor (PF) | 1 |
| Output Frequency | 50 / 60Hz ±0.1% |
| Switch Time (ms) | 10 (normal mode) / 10 (UPS mode) |
| Wave Form | Pure Sine Wave |
| Overload Protection (Battery Mode) | 10min@102%~120% load, 1min@120%~150% load, 10s@150%~200% load, 5s@>200% load |
| Max. Efficiency (Battery Mode) | 93% @ 48VDC |
| Parallel Quantity | N/A |
| Charger (PV / AC) | |
| Solar Charger Type | MPPT |
| Max PV Input Current / Power | 30A / 10.8kW |
| Operating Voltage Range (VDC) | 60~450 |
| Max PV Open Circuit Voltage (VDC) | 500 |
| Max PV Charge Current (A) | 120 |
| Max AC Charge Current (A) | 120 |
| Max Charge Current (PV + AC) (A) | 120 |
| Battery | |
| Nominal Battery Voltage | 48VDC |
| Floating Charge Voltage (VDC) | 56 |
| Overcharge Protection (VDC) | 60 |
| Battery Type | Lithium and Lead-acid |
| Interface | |
| Display | LCD |
| Communication | RS485 / USB / Dry Contact / CT / Meter |
| Monitoring | WiFi (Optional) |
| General Data | |
| Ingress Protection | IP21 |
| Operating Temperature | -10°C ~ +50°C |
| Relative Humidity | 5% ~ 95% (Non-condensing) |
| Storage Temperature | -15°C ~ +60°C |
| Net / Gross Weight (kg) | 14.2 / 15.7 |
| Dimension | |
| Product Size (mm) | 390 × 530 × 130 |
| Package Size (mm) | 470 × 610 × 210 |
| Max Operating Altitude | 4000m (Derating above 1000m) |
Why Choose 10.2KW 48V hybrid solar inverter?
- 10.2kW continuous output for entire home backup
- High surge capacity for heavy motor loads
- Smart power scheduling reduces electricity bills
- Supports multi-mode integration for flexible energy routing
- Maintenance-friendly monitoring & diagnostics
Why Choose this INV 10200-48 SINGLE PHASE ON/OFF-GRID SOLAR INVERTER?

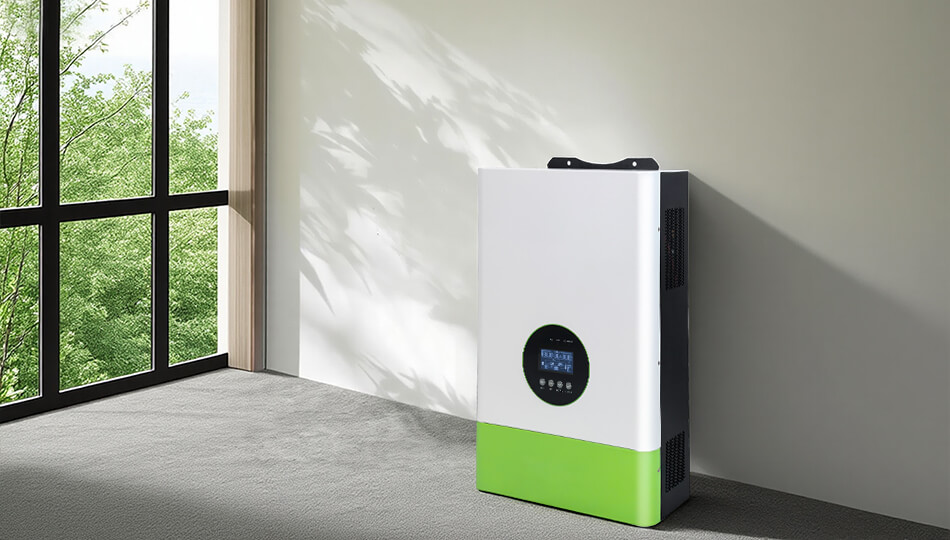

The INV 10200-48 delivers high power output for full-house backup systems, with seamless switching and strong load support for air conditioners, pumps, and heating appliances. Designed for villas, farms, schools, and commercial spaces requiring stable power, it significantly reduces energy expenses and increases renewable energy utilization.
Powerful Performance
Delivers 10.2kW rated capacity and 20.4kVA surge power with pure sine wave output, supporting demanding residential and commercial loads
Efficient Solar Integration
MPPT controller handles up to 10.8kW PV input within a wide 60–450V range, ensuring maximum solar utilization
Reliable Battery Management
Compatible with lithium and lead-acid batteries, featuring 56V floating charge and 60V overcharge protection for long battery life
High Conversion Efficiency
Achieves up to 93% efficiency at 48VDC, minimizing energy loss and ensuring stable operation
Comprehensive Control
LCD display with RS485, USB, Dry Contact, CT, and Meter interfaces, plus optional WiFi for smart monitoring and integration
Durable & Adaptable
IP21 protection, wide working temperature (-10℃ to +50℃), and reliable operation at altitudes up to 4000m
INV 10200-48 SINGLE PHASE ON/OFF-GRID SOLAR INVERTER delivers 10.2kW pure sine wave power with 10.8kW MPPT solar charging: high efficiency, battery compatibility, and smart monitoring. Contact us today for a quotation or request your free inverter & battery solution.
